تفاصيل المنتج:
|
| كمية: | 2 وحدات | النزوح: | 50CC |
|---|---|---|---|
| قوة المحرك: | 3 كيلو وات × 2 | وظيفة: | استقرار الضغط والتدفق |
| تأثير: | اتساق الأبعاد ± ± 0.05 مم | مصداقية: | تصميم زائدة عن الحاجة |
| القيمة الأساسية: | يحسن توحيد المنتج |

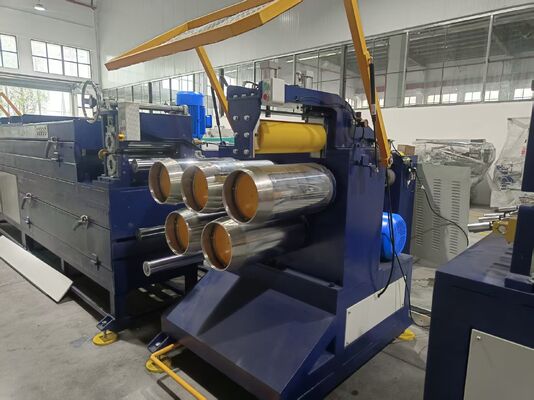

Melt pressure stability is the core guarantee for dimensional uniformity of extruded products. This production line is equipped with two high-precision metering pumps (50cc) between the extruder and the die. The metering pumps smooth out pressure fluctuations caused by screw rotation through forced, pulse-free gear output, ensuring constant melt flow and stable pressure into the 1-out-6 die. This design significantly improves dimensional consistency among the 6 strands and along the product length, controlling width and thickness tolerances stably within ±0.05mm. It is a key technology for achieving high-quality, high-uniformity products.
| Item | Parameter / Description |
|---|---|
| Number of Pumps | 2 units |
| Displacement per Pump | 50 cc/rev |
| Drive Motor Power | 3KW × 2 units |
| Working Medium | PP melt |
| Temperature Control | Independent heating, linked with extruder temp. control |
| Pressure Fluctuation Suppression | Melt pressure fluctuation ≤±1% |
| Applicable Extruder | φ120mm single screw |
